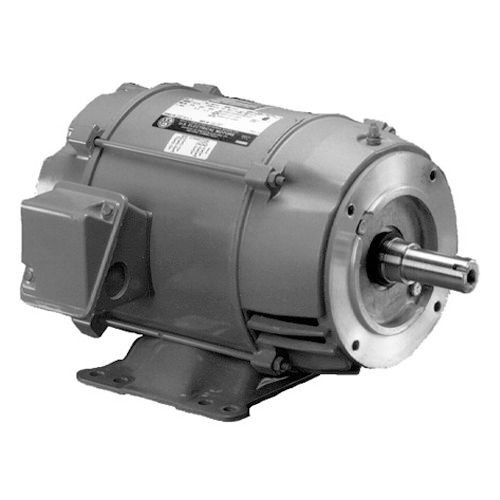

Nidec-US Motors 3 HP close-coupled pump motor rated for 208-230/460V three-phase operation at 1175 RPM. ODP (Open Drip Proof) enclosure suitable for indoor, non-hazardous locations. Designed for direct coupling to centrifugal pumps in HVAC hydronic systems, water circulation, and general industrial applications.
Specifications
- Product Type:
- Close-Coupled Pump Motor
- Subcategory:
- Hydronic Circulation
- Application:
- Commercial/Industrial
- System Type:
- Boiler, Chiller, Hydronic Circulation
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 3 HP
- RPM:
- 1175 RPM
- Speeds:
- 1
- Mounting Type:
- Close-Coupled
- Frame Size:
- 213
- Motor Type:
- Three Phase
- Power (kW):
- 2.2 kW
- Service Factor:
- 1.15
- KVA Code:
- H
- Locked Rotor Torque:
- 235% of full-load torque
- Breakdown Torque:
- 304% of full-load torque
- Ambient Temperature:
- 40°C
- Bearing Sizes:
- shaft end 6309-2Z-J/C3, opposite end 6205-2Z-J/C3
