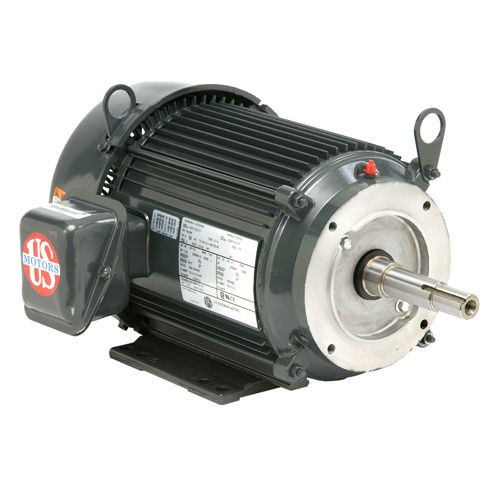

Nidec-US Motors 15 HP three-phase close-coupled pump motor rated for 230/460V operation at 1775 RPM. ODP (Open Drip Proof) enclosure suitable for indoor, non-hazardous duty. Direct-drive design for centrifugal pump applications in HVAC, industrial water circulation, and hydronic systems.
Specifications
- Product Type:
- Close Coupled Pump Motor
- Subcategory:
- Industrial Pump Motor
- Application:
- Commercial/Industrial
- System Type:
- Hydronic, Chiller, Boiler, Industrial Water Circulation
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 15 HP
- RPM:
- 1775 RPM
- Speeds:
- 1
- Mounting Type:
- Close Coupled
- Fuel Type:
- Electric
- Frame Size:
- 254
- Motor Type:
- Three Phase
- Power (kW):
- 11.2 kW
- Service Factor:
- 1.15
- Service Factor Amps:
- 42/21A
- KVA Code:
- G
- Locked Rotor Torque:
- 229% of full-load torque
- Breakdown Torque:
- 244% of full-load torque
- Ambient Temperature:
- 40°C
- Bearing Sizes:
- shaft end 6310-2Z-J/C3, opposite end 6309-2Z-J/C3
- Shaft Type:
- Single
- C Dimension:
- 24"
- Material:
- Rolled Steel
