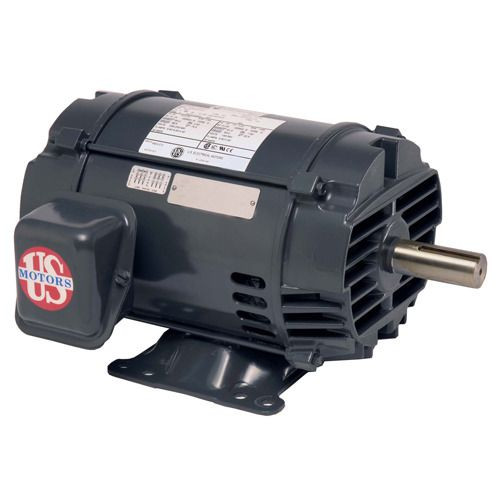

Nidec D40V2B Variable Speed Motor 40 HP 230/460V 3-Phase

Nidec-US Motors

$2,578.95
Write a Review
SKU:
D40V2B

Sold by freight quote

Tell us where it’s going and we’ll come back with a price and freight cost.

Request price & availability

We reply within one business day — quotes@globalpartsupply.com

Specifications

Product Type:
Variable Speed Motor
Subcategory:
Industrial/Commercial HVAC
Application:
Commercial/Industrial
System Type:
Condenser Fan, Compressor, Package Unit, Rooftop Unit
Installation Type:
OEM Replacement
Voltage:
230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Horsepower:
40 HP
RPM:
1780 RPM
Speeds:
1
Frame Size:
324
Mounting Type:
Horizontal / Footed
Motor Type:
Three Phase
Power (kW):
29.8 kW
Service Factor:
1.15
Service Factor Amps:
105/52A
KVA Code:
G
Locked Rotor Torque:
192% of full-load torque
Breakdown Torque:
255% of full-load torque
Ambient Temperature:
40°C
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6311-2Z-J/C3, opposite end 6211-2Z-J/C3
Shaft Type:
Single
Material:
Rolled Steel
Nidec-US Motors 40 HP variable speed motor for HVAC and industrial applications. Three-phase, 230/460V dual-voltage design, 1780 RPM, open drip-proof (ODP) enclosure. Suitable for condenser fans, compressors, and other heavy-duty HVAC equipment requiring variable frequency drive (VFD) compatibility.
