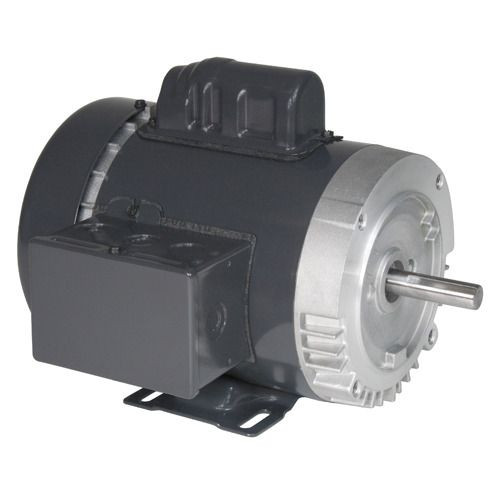

Nidec D1CPM2PH General Purpose Motor 1 HP 115/230V 1725 RPM

Nidec-US Motors

$682.95

In Stock

Write a Review
SKU:
D1CPM2PH
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $35.19 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
General Purpose Motor
Subcategory:
Single-Phase AC Motor
Application:
Residential/Commercial
System Type:
Furnace, Air Handler, Blower, Pump, Fan
Installation Type:
OEM Replacement
Voltage:
115/230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Horsepower:
1 HP
RPM:
1725 RPM
Speeds:
1
Frame Size:
56
Fuel Type:
Electric
Motor Type:
Capacitor Start
Power (kW):
0.8 kW
Service Factor:
1.15
Service Factor Amps:
9.2/4.6A
KVA Code:
J
Locked Rotor Torque:
217.4 oz-ft
Breakdown Torque:
117.7 oz-ft
Ambient Temperature:
40°C
Start Capacitor:
709 MFD
Bearing Sizes:
shaft end 6203, opposite end 6203
1 HP general-purpose motor with manual soft-start, 115/230V dual voltage, 1725 RPM, 56H frame, open drip-proof (ODP) enclosure. Suitable for belt-drive and direct-drive applications in HVAC blowers, pumps, and fans. Single-phase design for residential and light commercial use.
