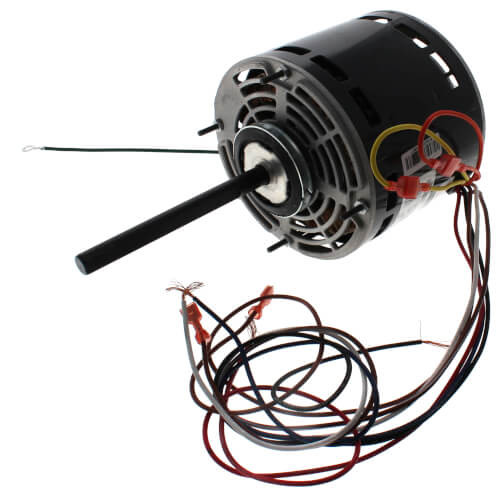

Nidec 1696 Direct Drive Blower Motor 0.75 HP 115V

Nidec-US Motors

$295.95

In Stock

Write a Review
SKU:
1696
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $28.47 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Direct Drive Blower Motor
Subcategory:
Furnace/Air Handler Blower
Application:
Residential
System Type:
Furnace, Air Handler
Installation Type:
OEM Replacement
Voltage:
115V
Voltage Class:
Line Voltage
Phase:
Single Phase
Horsepower:
0.75 HP
RPM:
1625 RPM
Speeds:
3
Mounting Type:
Direct Drive
Frame Size:
48
Motor Type:
PSC
Power (kW):
0.6 kW
Service Factor:
1.0
Service Factor Amps:
8.6A
Locked Rotor Torque:
8.961 oz-ft
Breakdown Torque:
59.39 oz-ft
Ambient Temperature:
40°C
Bearings:
SAB / SAB
Bearing Sizes:
shaft end 6201, opposite end 6201
Nidec-US Motors direct drive blower motor rated 0.75 HP at 1625 RPM. Single-phase 115V operation suitable for residential HVAC furnaces and air handlers. OAO (Open Air Over) enclosure design. OEM replacement for Nidec/US Motors equipment.
