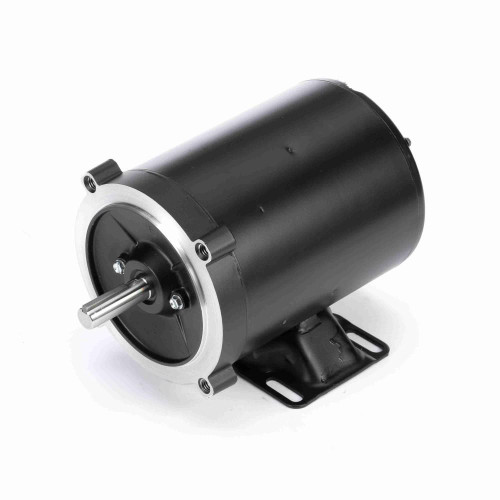

Marathon Y556A Variable Speed Motor 1 HP 575V 3-Phase

Regal Rexnord - Marathon

$632.95

In Stock

Write a Review
SKU:
Y556A
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $38.80 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Variable Speed Motor
Subcategory:
Three-Phase Industrial Motor
Application:
Commercial/Industrial
System Type:
Rooftop Unit, Package Unit, Air Handler
Installation Type:
OEM Replacement
Voltage:
575V
Voltage Class:
Line Voltage
Phase:
Three Phase
Horsepower:
1 HP
RPM:
1750 RPM
Fuel Type:
Electric
Mounting Type:
Bolt-on Base
Speeds:
1
Frame Size:
143TCZ Frame
Power (kW):
0.75 kW
Service Factor:
1.0
KVA Code:
M
Power Factor:
73%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Inverter Only
Inverter Duty:
Constant 1000:1
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6205, opposite end 6205
Shaft Type:
Single Special Extension
Mounting Orientation:
Horizontal
Assembly Position:
F1/F2 Capable
IP Rating:
IP43
Material:
Rolled Steel
Certifications:
UL Recognized, CSA, CE
Country of Origin:
Mexico
UPC:
722856207456
Lifecycle Status:
Discontinued by manufacturer
Marathon 1 HP variable-speed three-phase motor with TEFC enclosure, rated for 575V operation at 1750 RPM. Designed for industrial HVAC applications requiring precise speed control and reliable performance in enclosed environments.
