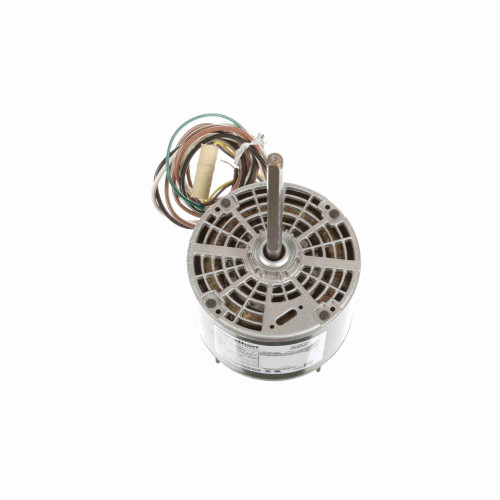

Marathon X441 Condenser Fan Motor 1/4 HP 208-230V

Specifications

Product Type:

Condenser Fan Motor

Subcategory:

PSC Condenser Fan

Application:

Residential/Commercial

System Type:

Split System, Package Unit

Installation Type:

OEM Replacement

Voltage:

208-230V

Voltage Class:

Line Voltage

Phase:

Single Phase

Amperage:

1.4A

Horsepower:

1/4 HP

RPM:

1075 RPM

Speeds:

1

Frame Size:

48Z Frame

Mounting Type:

Round - Extended Studs

Motor Type:

PSC

Power (kW):

0.19 kW

Service Factor:

1.0

KVA Code:

B

Power Factor:

96.1%

Duty:

Continuous

Ambient Temperature:

40°C

Starting Method:

Across The Line

Bearings:

Ball / Ball

Bearing Sizes:

shaft end 6203, opposite end 6203

Shaft Type:

Single Special Extension

Overall Length:

10 3/4"

Frame Length:

3 3/4"

Mounting Orientation:

Horizontal

Assembly Position:

F1 Only

IP Rating:

IP10

Fuel Type:

Electric

Material:

Rolled Steel

Certifications:

UL Recognized, CSA

Country of Origin:

Mexico

UPC:

722856037701
