Marathon 1 HP direct-drive blower motor for residential and light commercial HVAC systems. Single-phase, 208-230V operation at 1625 RPM with open air-over (OAO) enclosure. Designed for furnace and air handler applications requiring reliable, efficient airflow.

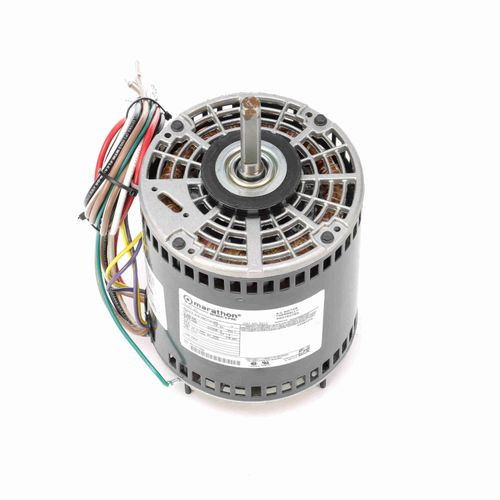

Marathon X211 Direct Drive Blower Motor 1 HP 208-230V
Regal Rexnord - Marathon
$335.95
In Stock
- SKU:
- X211
Specifications
- Product Type:
- Direct Drive Blower Motor
- Subcategory:
- Furnace/Air Handler Blower
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Split System
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1 HP
- RPM:
- 1625 RPM
- Speeds:
- 2
- Mounting Type:
- Direct Drive
- Frame Size:
- 48Y Frame
- Motor Type:
- PSC
- Power (kW):
- 0.75 kW
- Service Factor:
- 1.0
- KVA Code:
- C
- Power Factor:
- 94.8%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Single Special Extension
- Overall Length:
- 9 3/4"
- Frame Length:
- 5 3/4"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F2 Only
- IP Rating:
- IP01
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- Country of Origin:
- Mexico
- UPC:
- 722856049063
- Lifecycle Status:
- Active
