Marathon 7.5 HP three-phase general purpose motor with TEFC enclosure, rated for 230/460V operation at 1770 RPM. Suitable for HVAC applications including fan drives, pump motors, and compressor duty. Durable industrial-grade construction.

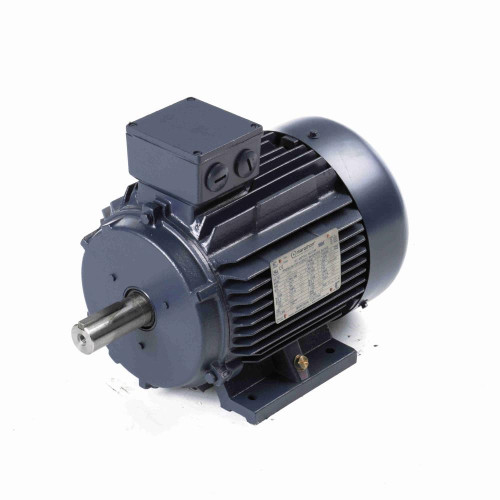

Marathon R328A General Purpose Motor 7.5 HP 3-Phase 1770 RPM
Regal Rexnord - Marathon
$900.95
Write a Review
Write a Review
Regal Rexnord - Marathon
Marathon R328A General Purpose Motor 7.5 HP 3-Phase 1770 RPM
- SKU:
- R328A
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Three-Phase Industrial Motor
- Application:
- Commercial/Industrial
- System Type:
- HVAC Fan Drive, Pump Motor, Compressor Duty
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 7.5 HP
- RPM:
- 1770 RPM
- Speeds:
- 1
- Frame Size:
- 132S Frame
- Mounting Type:
- Rigid Base
- Motor Type:
- Three Phase
- Power (kW):
- 5.6 kW
- Service Factor:
- 1.15
- KVA Code:
- J
- Power Factor:
- 82.5%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Line Or Inverter
- Inverter Duty:
- Constant 20:1
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6308, opposite end 6207
- Shaft Type:
- IEC
- Overall Length:
- 18.26"
- Mounting Orientation:
- Horizontal
- IP Rating:
- IP55
- Material:
- Cast Iron
- Certifications:
- UL Recognized, CE
- Country of Origin:
- China
- UPC:
- 722856026576
- Lifecycle Status:
- Discontinued by manufacturer
