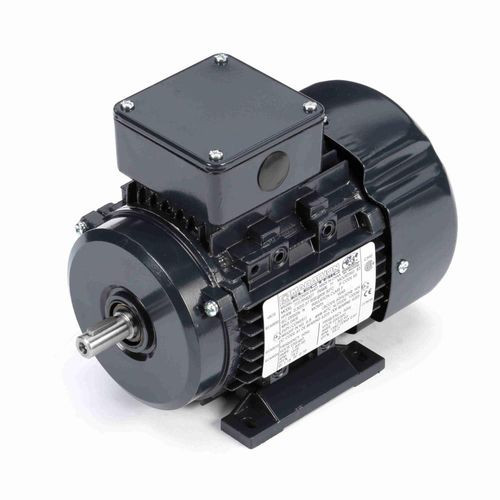

Marathon R307 industrial three-phase motor, 1/2 HP, 1800 RPM, dual-voltage 230/460V, 71 Frame TEFC with rigid base mount. Features Class F insulation, ball bearings, and reversible rotation for general-purpose industrial applications.
Marathon R307 Three-Phase Motor 1/2 HP 230/460V 1800 RPM
Regal Rexnord - Marathon
$414.95
In Stock — 10+ available
- SKU:
- R307
Specifications
- Product Type:
- Three-Phase Industrial Motor
- Subcategory:
- General Purpose Motor
- Application:
- Industrial
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 1.8/0.90 A
- Horsepower:
- 1/2 HP
- RPM:
- 1695 RPM
- Speeds:
- 1
- Frame Size:
- 71 Frame
- Mounting Type:
- Rigid Base (B3)
- Fuel Type:
- Electric
- Material:
- Cast Aluminum
- Motor Type:
- Three Phase
- Power (kW):
- 0.37 kW
- Service Factor:
- 1.15
- KVA Code:
- H
- NEMA Design:
- B
- Power Factor:
- 70%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Line Or Inverter
- Inverter Duty:
- Constant 20:1
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- IEC
- Overall Length:
- 9 7/16"
- Frame Length:
- 4.68"
- Mounting Orientation:
- Horizontal
- IP Rating:
- IP55
- Certifications:
- UL Recognized, CSA, CE
- Country of Origin:
- China
- UPC:
- 722856026217
- Lifecycle Status:
- Active
