Marathon 0.75 HP three-phase general purpose motor with TEFC enclosure, rated for 208-230/460V operation at 1140 RPM. Suitable for a wide range of HVAC and industrial applications requiring reliable, durable motor performance.

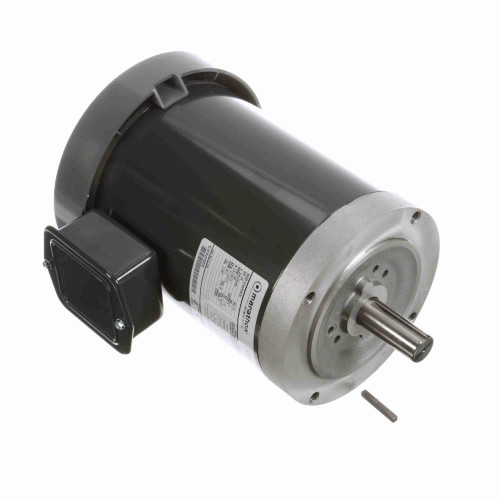

Marathon K1318 General Purpose Motor 0.75 HP 3-Phase
Regal Rexnord - Marathon
$86.95
In Stock
- SKU:
- K1318
Specifications
- Product Type:
- General Purpose Motor
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Package Unit, Rooftop Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 0.75 HP
- RPM:
- 1140 RPM
- Speeds:
- 1
- Frame Size:
- 143TC Frame
- Motor Type:
- Capacitor Start / Capacitor Run
- Power (kW):
- 0.56 kW
- Service Factor:
- 1.15
- KVA Code:
- K
- NEMA Design:
- B
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6205, opposite end 6203
- Shaft Type:
- Nema 143Tc
- Mounting Orientation:
- Any
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- Country of Origin:
- Mexico
- UPC:
- 722856015211
- Lifecycle Status:
- Discontinued by manufacturer
