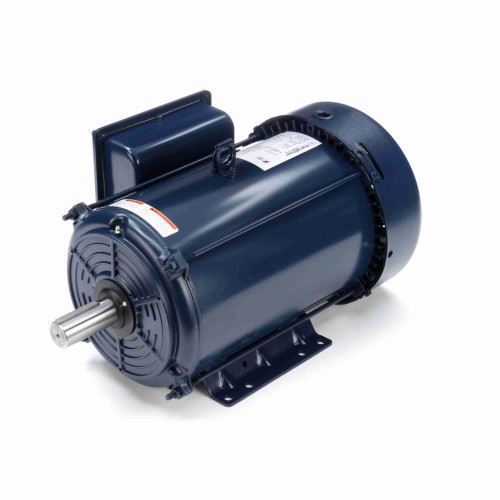

Marathon 10 HP single-phase general purpose motor rated for 230V operation at 1759 RPM. TEFC (totally enclosed fan-cooled) enclosure provides protection in demanding environments. Suitable for a wide range of industrial and commercial applications requiring reliable continuous-duty performance.
Specifications
- Product Type:
- General Purpose Motor
- Application:
- Commercial/Industrial
- Installation Type:
- OEM Replacement
- Voltage:
- 230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 10 HP
- RPM:
- 1759 RPM
- Speeds:
- 1
- Mounting Type:
- Rigid Base
- Frame Size:
- 215T Frame
- Motor Type:
- Capacitor Start / Capacitor Run
- Power (kW):
- 7.5 kW
- Service Factor:
- 1.0
- KVA Code:
- H
- NEMA Design:
- L
- Power Factor:
- 90.5%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6307, opposite end 6206
- Shaft Type:
- Single
- Overall Length:
- 21.09"
- Frame Length:
- 12.4"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 Only
- IP Rating:
- IP43
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA, CE
- Country of Origin:
- USA
- UPC:
- 722856092175
