Marathon 15 HP close-coupled pump motor, 3-phase, 3515 RPM, dual-voltage 230/460V operation. ODP (Open Drip Proof) enclosure rated for industrial pump applications. 215JM frame size provides direct coupling to standard pump shafts.

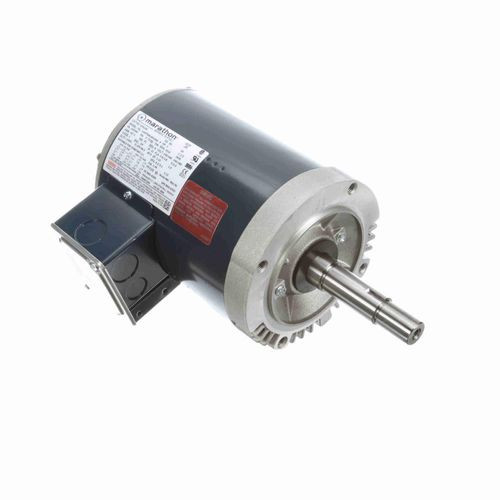

Marathon GT0421A Close Coupled Pump Motor 15 HP 230/460V
Regal Rexnord - Marathon
$1,203.95
- SKU:
- GT0421A
Specifications
- Product Type:
- Close Coupled Pump Motor
- Subcategory:
- Industrial Pump Motor
- Application:
- Industrial
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 15 HP
- RPM:
- 3515 RPM
- Speeds:
- 1
- Frame Size:
- 215JM Frame
- Mounting Type:
- Close Coupled
- Power (kW):
- 11.2 kW
- Service Factor:
- 1.15
- KVA Code:
- G
- NEMA Design:
- B
- Power Factor:
- 85.8%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Line Or Inverter
- Inverter Duty:
- Variable 10:1
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6309, opposite end 6206
- Shaft Type:
- JM
- Overall Length:
- 19.22"
- Frame Length:
- 11.15"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1/F2 Capable
- IP Rating:
- IP22
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA, CE
- Country of Origin:
- Mexico
- UPC:
- 722856061560
