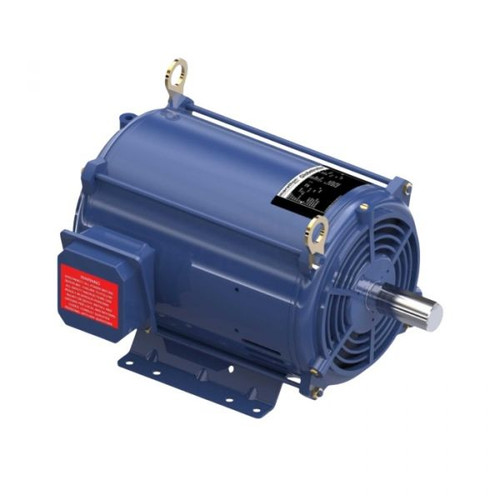

Marathon 3 HP three-phase general-purpose motor rated 230/460V, 60 Hz, 1200 RPM. NEMA 213T frame with open drip-proof (ODP) enclosure, keyed shaft, rigid base mount, and ball bearings. Service factor 1.15. Suitable for pump, fan, and compressor applications in commercial and industrial HVAC systems.
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Three-Phase Industrial Motor
- Application:
- Commercial/Industrial
- System Type:
- Pump, Fan, Compressor
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 8.4/4.2 A
- Horsepower:
- 3 HP
- RPM:
- 1183 RPM
- Speeds:
- 1
- Frame Size:
- 213T Frame
- Mounting Type:
- Rigid Base Mount
- Fuel Type:
- Electric
- Power (kW):
- 2.2 kW
- Service Factor:
- 1.15
- KVA Code:
- K
- NEMA Design:
- B
- Power Factor:
- 75%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Line Or Inverter
- Inverter Duty:
- Constant 2:1/Variable 10:1
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6307, opposite end 6206
- Overall Length:
- 17.52"
- Frame Length:
- 11.15"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1/F2 Capable
- IP Rating:
- IP22
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA, CE
- Country of Origin:
- Mexico
- UPC:
- 722856062390
