Marathon 0.75 HP three-phase fan and blower motor rated for 208-230/460V operation at 1725 RPM. Open drip-proof (ODP) enclosure suitable for general-purpose HVAC applications. Regal Rexnord OEM replacement.

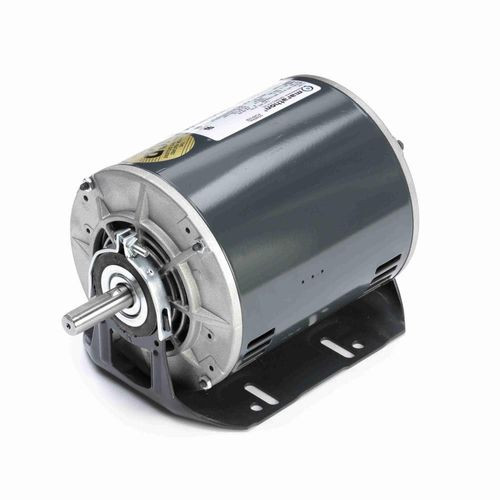

Marathon G141 Fan/Blower Motor 0.75 HP 3-Phase 1725 RPM
Regal Rexnord - Marathon
$479.95
In Stock
- SKU:
- G141
Specifications
- Product Type:
- Fan/Blower Motor
- Subcategory:
- Three-Phase Industrial Motor
- Application:
- Commercial
- System Type:
- Air Handler, Rooftop Unit, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 0.75 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Mounting Type:
- Resilient Base
- Frame Size:
- 56 Frame
- Power (kW):
- 0.56 kW
- Service Factor:
- 1.25
- KVA Code:
- L
- NEMA Design:
- B
- Power Factor:
- 66.3%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Overall Length:
- 10.85"
- Frame Length:
- 6 9/16"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 Only
- IP Rating:
- IP22
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA, CE
- Country of Origin:
- Mexico
- UPC:
- 722856040732
- Lifecycle Status:
- Active
