Marathon 1 HP three-phase severe duty motor rated for 230/460V operation at 1735 RPM. TENV (Totally Enclosed Non-Ventilated) enclosure provides protection in demanding industrial and commercial HVAC applications. Designed for reliable performance in compressors, pumps, and fan drives.

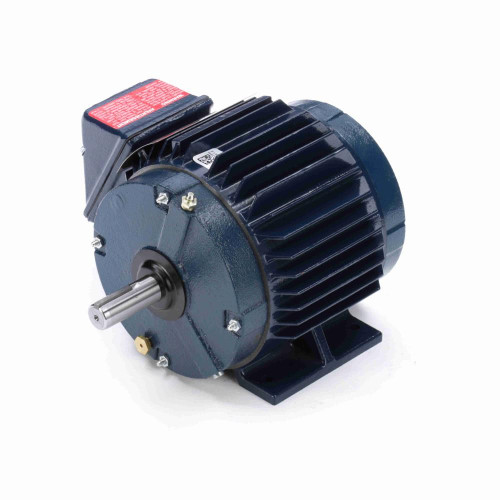

Marathon E461 Severe Duty Motor 1 HP 3-Phase 1735 RPM
Regal Rexnord - Marathon
$539.95
In Stock
- SKU:
- E461
Specifications
- Product Type:
- Three-Phase Motor
- Subcategory:
- Severe Duty Industrial Motor
- Application:
- Commercial/Industrial
- System Type:
- Compressor, Pump, Fan Drive
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 1 HP
- RPM:
- 1735 RPM
- Speeds:
- 1
- Mounting Type:
- Rigid Base
- Frame Size:
- 143T Frame
- Power (kW):
- 0.75 kW
- Service Factor:
- 1.15
- KVA Code:
- M
- NEMA Design:
- B
- Power Factor:
- 79%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Line Or Inverter
- Inverter Duty:
- Constant 1000:1
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6205, opposite end 6203
- Overall Length:
- 10.43"
- Frame Length:
- 5 1/4"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1/F2 Capable
- IP Rating:
- IP54
- Hazardous Location:
- Division 2 T2B
- Material:
- Cast Iron
- Certifications:
- UL Recognized, CSA, CE
- Country of Origin:
- Mexico
- UPC:
- 722856019066
- Lifecycle Status:
- Active
