Marathon 2 HP three-phase general purpose motor rated for 230/460V operation at 1755 RPM. TEFC (totally enclosed fan-cooled) enclosure provides protection in demanding industrial and commercial environments. Suitable for pump drives, compressors, and other continuous-duty applications.

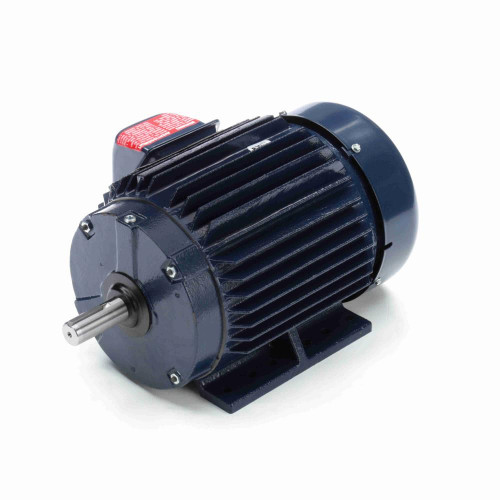

Marathon E2207-P General Purpose Motor 2 HP 3-Phase 1755 RPM
Regal Rexnord - Marathon
$798.95
In Stock
- SKU:
- E2207-P
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Three-Phase Industrial Motor
- Application:
- Commercial/Industrial
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 2 HP
- RPM:
- 1755 RPM
- Speeds:
- 1
- Mounting Type:
- Rigid Base
- Frame Size:
- 145T Frame
- Power (kW):
- 1.5 kW
- Service Factor:
- 1.15
- KVA Code:
- N
- NEMA Design:
- B
- Power Factor:
- 72%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Line Or Inverter
- Inverter Duty:
- Constant 20:1
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6205, opposite end 6203
- Overall Length:
- 13.99"
- Frame Length:
- 7 1/2"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1/F2 Capable
- IP Rating:
- IP43
- Material:
- Cast Iron
- Certifications:
- UL Recognized, CSA, CE
- Country of Origin:
- Mexico
- UPC:
- 722856016959
- Lifecycle Status:
- Active
