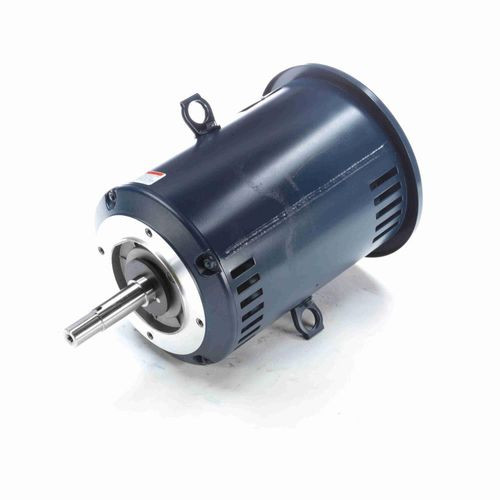

Marathon 7.5 HP three-phase close-coupled pump motor rated for 230/460V operation at 3490 RPM. Open drip-proof (ODP) enclosure suitable for indoor, non-hazardous environments. Designed for direct-drive pump applications in industrial and commercial HVAC, hydronic, and general-purpose pumping systems.
Specifications
- Product Type:
- Close-Coupled Pump Motor
- Subcategory:
- Three-Phase Industrial Motor
- Application:
- Commercial/Industrial
- System Type:
- Pump Drive, Hydronic System, Chiller, Boiler Circulation
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 7.5 HP
- RPM:
- 3490 RPM
- Speeds:
- 1
- Mounting Type:
- Close-Coupled
- Fuel Type:
- Electric
- Frame Size:
- 184JMV Frame
- Power (kW):
- 5.6 kW
- Service Factor:
- 1.15
- KVA Code:
- J
- NEMA Design:
- A
- Power Factor:
- 89%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6207, opposite end 6205
- Shaft Type:
- JM
- Overall Length:
- 17 1/8"
- Frame Length:
- 10 1/2"
- Mounting Orientation:
- Shaft Down
- Assembly Position:
- F1 Only
- IP Rating:
- IP22
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA, CE
- Country of Origin:
- Mexico
- UPC:
- 722856050960
