Marathon 0.5 HP single-phase instant reversing motor rated 115/230V, 1725 RPM. Open drip-proof (ODP) enclosure suitable for HVAC blower and fan applications. Reversible rotation design allows field-selectable direction change without rewiring.

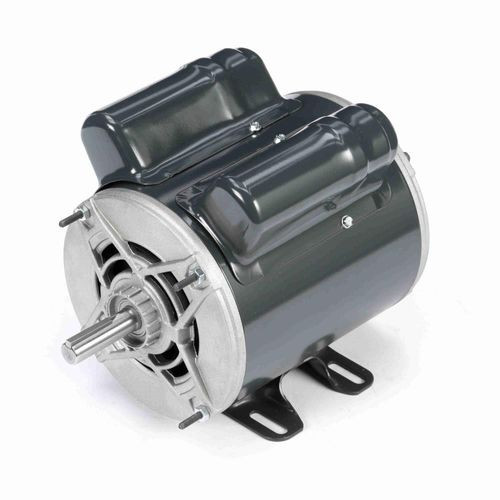

Marathon C1458 Instant Reversing Motor 0.5 HP 115/230V
Regal Rexnord - Marathon
$535.95
In Stock — 10+ available
- SKU:
- C1458
Specifications
- Product Type:
- Reversible AC Motor
- Subcategory:
- Single-Phase Blower Motor
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 115/230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1/2 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Fuel Type:
- Electric
- Frame Size:
- 56 Frame
- Motor Type:
- Capacitor Start
- Power (kW):
- 0.37 kW
- Service Factor:
- 1.25
- KVA Code:
- N
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Nema 56
- Mounting Orientation:
- Any
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- Country of Origin:
- Mexico
- UPC:
- 722856042699
- Lifecycle Status:
- Active
