Marathon B306 AC induction motor, 1/2 HP, 115V single-phase, 1725 RPM. NEMA 48Y frame, drip-proof construction. Suitable for direct-drive and belt-drive applications in HVAC blower assemblies and general industrial use. Includes installation and maintenance documentation.

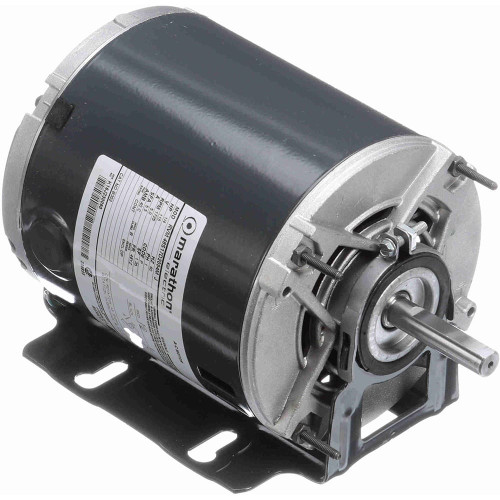

Marathon B306 Fan and Blower Motor 1/2 HP 115V 1725RPM
Regal Rexnord - Marathon
$213.95
In Stock — 10+ available
- SKU:
- B306
Specifications
- Product Type:
- AC Induction Motor
- Subcategory:
- Blower Motor
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 7.5A
- Horsepower:
- 1/2 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Frame Size:
- 48Y Frame
- Mounting Type:
- Rigid Base (Footed)
- Temperature Range:
- 40°C to 70°C
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Motor Type:
- Split Phase
- Power (kW):
- 0.37 kW
- Service Factor:
- 1.25
- KVA Code:
- M
- Power Factor:
- 69.6%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Single Special Extension
- Overall Length:
- 10.32"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 Only
- IP Rating:
- IP22
- UPC:
- 722856039873
- Lifecycle Status:
- Active
