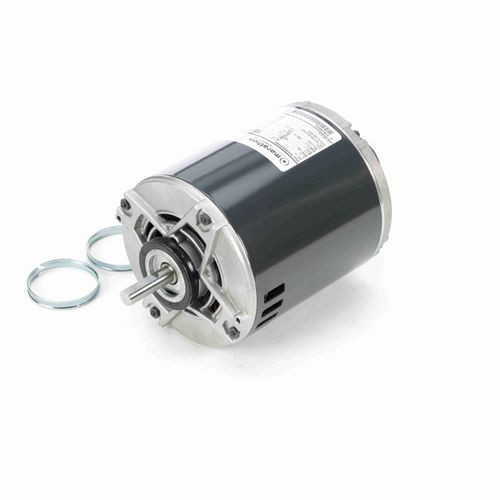

Marathon B202 Belt Drive Blower Motor 1/3 HP 115V

Regal Rexnord - Marathon

$189.95

In Stock — 10+ available

Write a Review
SKU:
B202
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $26.15 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Belt Drive Blower Motor
Subcategory:
Furnace/Air Handler
Application:
Residential/Commercial
System Type:
Furnace, Air Handler, Package Unit
Installation Type:
OEM Replacement
Voltage:
115V
Voltage Class:
Line Voltage
Phase:
Single Phase
Horsepower:
1/3 HP
RPM:
1725 RPM
Speeds:
1
Mounting Type:
Belt Drive
Frame Size:
56Z Frame
Motor Type:
Split Phase
Power (kW):
0.25 kW
Service Factor:
1.35
KVA Code:
M
Power Factor:
61.5%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6203, opposite end 6203
Shaft Type:
Single Special Extension
Overall Length:
9.72"
Frame Length:
5 3/4"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP22
Material:
Rolled Steel
Certifications:
UL Recognized, CSA
Country of Origin:
Mexico
UPC:
722856039835
Lifecycle Status:
Active
Marathon B202 belt drive blower motor delivers 1/3 HP at 1725 RPM for residential and light commercial HVAC systems. Single-phase 115V operation with open drip-proof (ODP) enclosure. Direct replacement for furnace and air handler applications.
