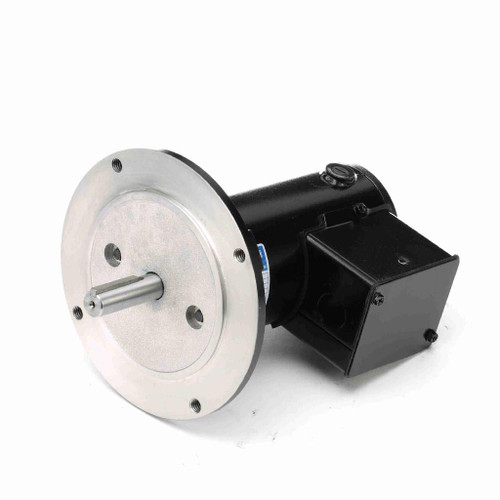

Leeson M1130054.00 Sub-Fractional Motor 0.17 HP 90V 1750 RPM

Leeson

$353.95

In Stock

Write a Review
SKU:
M1130054.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $24.50 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Sub-Fractional DC Motor
Subcategory:
DC Motor
Application:
Industrial
Installation Type:
OEM Replacement
Voltage:
90V
Voltage Class:
Low Voltage
Amperage:
1.7A
Horsepower:
0.17 HP
RPM:
1750 RPM
Speeds:
1
Frame Size:
34 Frame
Mounting Type:
Round
Fuel Type:
Electric
Power (kW):
0.13 kW
Service Factor:
1.0
Output Torque:
96 oz-in
Duty:
Continuous
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6003, opposite end 608
Overall Length:
8.93"
Frame Length:
6.18"
Country of Origin:
USA
UPC:
691720091357
Lifecycle Status:
Active
Leeson 0.17 HP DC sub-fractional motor, 90V, 1750 RPM, 34 frame, TENV enclosure. Reversible rotation, high starting torque, double-shielded ball bearings, and external brush access for easy maintenance.
