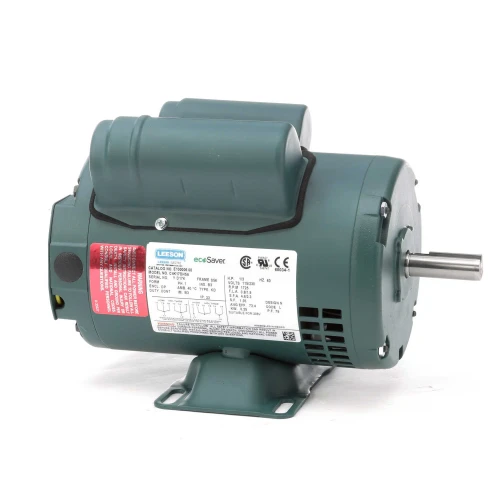

Leeson E100006.00 Motor 1/3 HP 1725 RPM 115/230V

Leeson

$405.95

In Stock

Write a Review
SKU:
E100006.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $28.90 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
General Purpose Motor
Subcategory:
Single-Phase AC Motor
Application:
Residential/Commercial
System Type:
Furnace, Air Handler, Fan, Pump
Installation Type:
OEM Replacement
Voltage:
115/230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
3.8/1.9 A
Horsepower:
1/3 HP
RPM:
1725 RPM
Speeds:
1
Frame Size:
56 Frame
Mounting Type:
Rigid Base Mount
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
Capacitor Start / Capacitor Run
Power (kW):
0.25 kW
Service Factor:
1.35
KVA Code:
L
NEMA Design:
N
Power Factor:
79%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6203, opposite end 6203
Shaft Type:
Nema 56
Overall Length:
10.99"
Frame Length:
7"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP22
Country of Origin:
Mexico
UPC:
691720000717
Lifecycle Status:
Active
Leeson 1/3 HP general-purpose motor, 1725 RPM, single-phase 115/230V 60Hz. NEMA 56 frame with open drip-proof (ODP) enclosure, ball bearings, and rigid base mount. Suitable for continuous-duty applications in HVAC, fans, pumps, and light industrial equipment.
