Leeson 191950.00 General Purpose Motor 0.75 HP 208-230/460V

Leeson 191950.00 General Purpose Motor 0.75 HP 208-230/460V

Leeson

$1,142.95

In Stock

Write a Review
SKU:
191950.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $35.61 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — call (312) 564-5212 or request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Shipping details

Specifications

Product Type:
General Purpose Motor
Subcategory:
Washdown Duty
Application:
Commercial
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
2.4-2.3/1.2 A
Horsepower:
0.75 HP
RPM:
1740 RPM
Speeds:
1
Frame Size:
56C Frame
Mounting Type:
Rigid Base
Fuel Type:
Electric
Material:
Stainless Steel
Motor Type:
Three Phase
Power (kW):
0.56 kW
Service Factor:
1.15
KVA Code:
L
NEMA Design:
B
Power Factor:
73%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6205, opposite end 6205
Shaft Type:
Nema 56
Overall Length:
13.77"
Frame Length:
5.49"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP55
Country of Origin:
China
UPC:
691720052679
Lifecycle Status:
Active

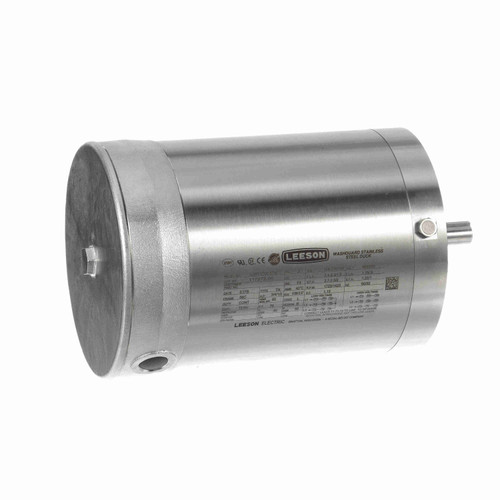

Leeson SST Duck™ washdown-duty general purpose motor rated 0.75 HP, 3-phase, 60 Hz, 208-230/460V, 1800 RPM, 56C frame, TEFC enclosure. Features full stainless steel exterior, double-sealed ball bearings, and Class F insulation for wet/corrosive environments. Service factor 1.15, reversible rotation, rigid base mount.
!
