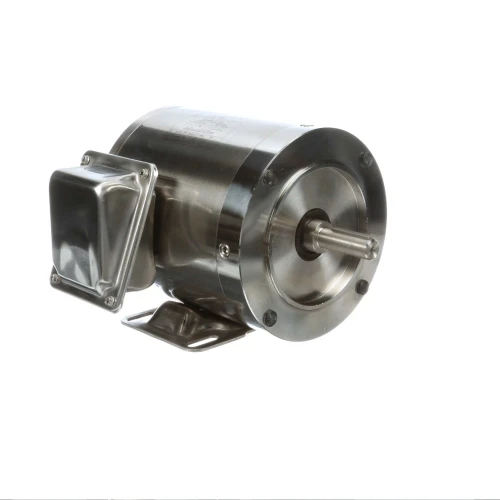

Leeson 191204.00 Stainless Steel Motor 1/2 HP 1800 RPM 230/460V

Leeson

$864.95

In Stock — 10+ available

Write a Review
SKU:
191204.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $36.05 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Three-Phase Motor
Subcategory:
Stainless Steel Industrial Motor
Application:
Commercial/Industrial
Installation Type:
OEM Replacement
Voltage:
230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
1.6/0.8A
Horsepower:
1/2 HP
RPM:
1740 RPM
Speeds:
1
Frame Size:
56C Frame
Mounting Type:
C Face Mount
Fuel Type:
Electric
Material:
300-Series Stainless Steel
Power (kW):
0.37 kW
Service Factor:
1.15
KVA Code:
L
NEMA Design:
B
Power Factor:
68%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6205, opposite end 6205
Shaft Type:
Nema 56
Overall Length:
9.78"
Frame Length:
6"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP55
Certifications:
UL Recognized, CSA, CE
Country of Origin:
China
UPC:
691720308172
Lifecycle Status:
Active
Motor Type:
Three Phase
Leeson 1/2 HP three-phase stainless steel motor rated 1800 RPM at 230/460V 60Hz. TENV enclosure with 56C NEMA frame, keyed shaft, and rigid base C-face mount. All 300-series stainless steel construction (frame, base, endshields, shaft, hardware) for superior corrosion resistance in washdown environments. Class F insulation, 1.15 service factor, reversible rotation.
