Leeson 1 HP three-phase brake motor with 1760 RPM, 56C NEMA frame, and TEFC enclosure. Operates on 208-230/460V at 60 Hz with 1.15 service factor. Features fail-safe spring-set brake, reversible rotation, and ball bearings. Ideal for industrial applications requiring reliable stopping and holding torque.

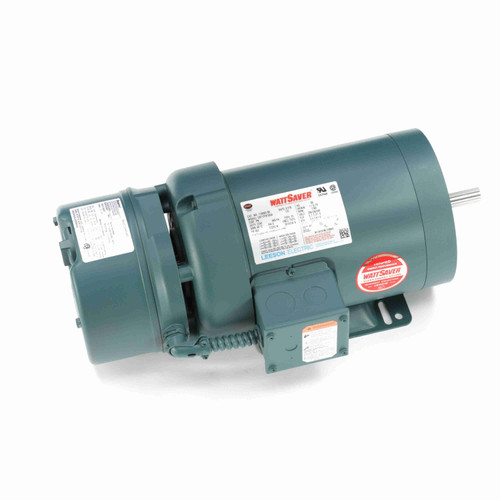

Leeson 119563.00 Brake Motor 1 HP 1760 RPM 208-230/460V 3PH
Leeson
$1,268.95
In Stock
(No reviews yet)
Write a Review
Write a Review
Leeson
Leeson 119563.00 Brake Motor 1 HP 1760 RPM 208-230/460V 3PH
- SKU:
- 119563.00
- Product Type:
- Brake Motor
- Subcategory:
- Three-Phase AC Brake Motor
- Application:
- Industrial
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 3.2/1.6 A
- Horsepower:
- 1 HP
- RPM:
- 1760 RPM
- Speeds:
- 1
- Frame Size:
- 56C Frame
- Mounting Type:
- C-Face Rigid Base
- Fuel Type:
- Electric
- Material:
- Rolled Steel
