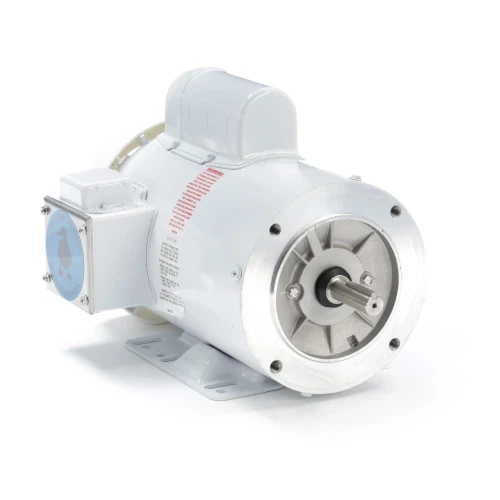

Leeson 114424.00 1.5 HP Explosion-Proof Motor 115/208-230V

Leeson

$1,029.95

In Stock

Write a Review
SKU:
114424.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $38.25 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Explosion-Proof Motor
Subcategory:
Single-Phase Industrial Motor
Application:
Industrial
Installation Type:
OEM Replacement
Voltage:
115/208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
15.4/8.4-7.7 A
Horsepower:
1.5 HP
RPM:
3450 RPM
Speeds:
1
Frame Size:
56C Frame
Mounting Type:
C-Face
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
Capacitor Start / Capacitor Run
Power (kW):
1.1 kW
Service Factor:
1.0
KVA Code:
H
NEMA Design:
L
Power Factor:
81.5%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6203, opposite end 6203
Shaft Type:
Nema 56
Overall Length:
14 7/16"
Frame Length:
7 5/16"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP54
Hazardous Location:
Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C
Certifications:
UL Listed, CSA
Country of Origin:
Mexico
UPC:
691720013946
Lifecycle Status:
Active
Leeson 1.5 HP single-phase explosion-proof motor rated for hazardous locations (Class I Groups C & D, Class II Groups F & G). Features 3450 RPM, 115/208-230V 60 Hz operation, TEFC enclosure, 56C frame, and reversible ball-bearing construction. Suitable for pumps, fans, blowers, and material handling in environments with explosive gases or dust.
