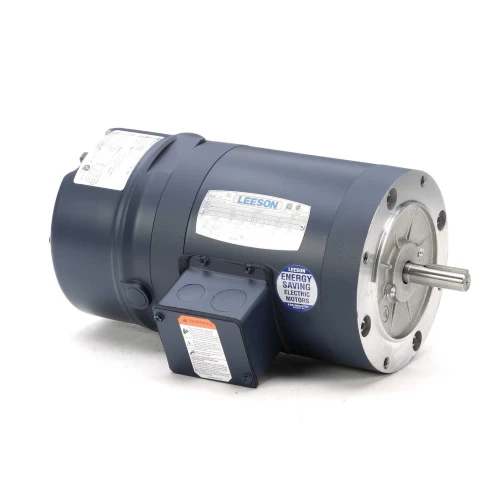

Leeson 114158.00 Brake Motor 0.33 HP 3-Phase 230/460V

Leeson

$839.95

In Stock

Write a Review
SKU:
114158.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $33.85 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Brake Motor
Subcategory:
Three-Phase Brake Motor
Application:
Commercial/Industrial
System Type:
Industrial Motor Drive, Machinery
Installation Type:
OEM Replacement
Voltage:
230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
1.3/0.65 A
Horsepower:
0.33 HP
RPM:
1725 RPM
Speeds:
1
Frame Size:
56C Frame
Mounting Type:
C-Face
Fuel Type:
Electric
Power (kW):
0.25 kW
Service Factor:
1.15
KVA Code:
L
Power Factor:
66%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6203, opposite end 6203
Shaft Type:
Nema 56
Overall Length:
13 9/16"
Frame Length:
5"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP43
Material:
Rolled Steel
Country of Origin:
USA
UPC:
691720013250
Lifecycle Status:
Active
Leeson 0.33 HP three-phase brake motor with fail-safe positive stop and holding brake. Operates at 208-230/460V, 60 Hz, 1725 RPM with 56C TENV frame. Load stops automatically when power is turned off; includes manual brake release for emergency operation. Spring-set brake manufactured by Stearns with dual voltage coil (230/460VAC). Class B insulation, 1.15 service factor, continuous duty.
