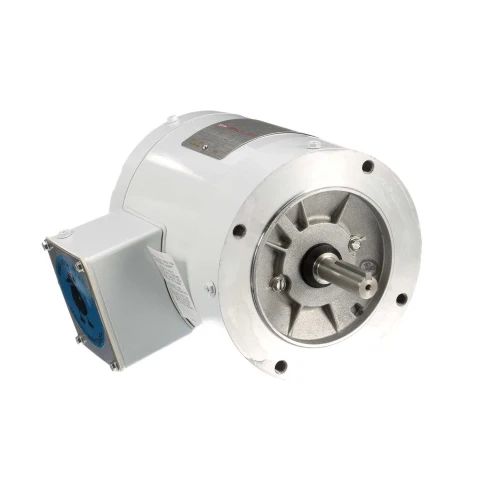

Leeson 113649.00 Motor 1/4 HP 3-Phase 1800 RPM 208-230/460V

Leeson 113649.00 Motor 1/4 HP 3-Phase 1800 RPM 208-230/460V

Leeson

$445.95

In Stock

(No reviews yet) Write a Review
SKU:
113649.00
Product Type:
Three-Phase AC Motor
Subcategory:
General Purpose Washdown Duty Motor
Application:
Commercial
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
1.1/0.55 A
Horsepower:
1/4 HP
RPM:
1800 RPM
Speeds:
1
Frame Size:
56C Frame
Mounting Type:
C-Face Flange Mount
Fuel Type:
Electric
Material:
Rolled Steel
Adding to cart… The item has been added
Leeson 1/4 HP three-phase washdown-duty motor with TENV enclosure, 1800 RPM, 56C frame, and C-face flange mount. Rated 208-230/460V 60Hz with stainless steel shaft, sealed bearings, and white epoxy paint for corrosion resistance in wet environments. Service factor 1.15; Class F insulation.
!
