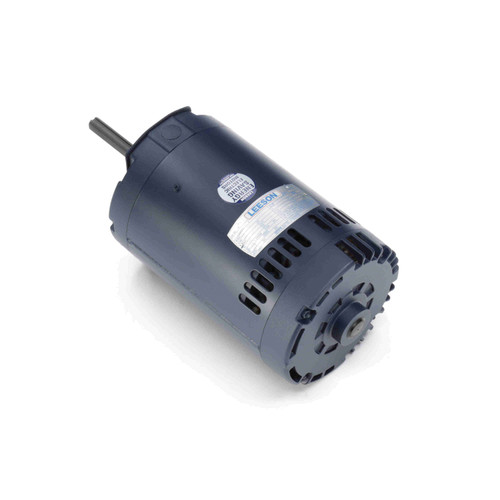

Leeson 1.5 HP three-phase condenser fan motor rated 230/460V, 1140 RPM, 56Y frame with drip-proof air-over enclosure. Features automatic thermal overload protection, permanently lubricated double-sealed bearings, and belly-band mounting for vertical shaft-up operation on condenser fan applications.
Specifications
- Product Type:
- Condenser Fan Motor
- Subcategory:
- Three-Phase HVAC Motor
- Application:
- Residential/Commercial
- System Type:
- Split System, Package Unit, Air Handler
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 5.6/2.8 A
- Horsepower:
- 1.5 HP
- RPM:
- 1140 RPM
- Speeds:
- 1
- Frame Size:
- 56Y Frame
- Mounting Type:
- Belly Band
- Temperature Range:
- -20°F to 350°F
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Power (kW):
- 1.1 kW
- Service Factor:
- 1.15
- KVA Code:
- J
- NEMA Design:
- B
- Power Factor:
- 68%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Single Special Extension
- Overall Length:
- 15 1/16"
- Frame Length:
- 7 1/2"
- Mounting Orientation:
- Shaft Up
- Assembly Position:
- F1/F2 Capable
- IP Rating:
- IP22
- Country of Origin:
- USA
- UPC:
- 691720009635
- Lifecycle Status:
- Active
