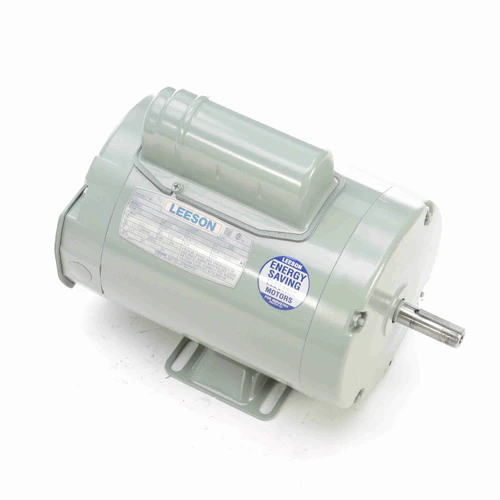

Leeson 1.5 HP single-phase motor rated for 115/230V operation at 3450 RPM. TEFC (totally enclosed fan-cooled) enclosure provides protection in demanding environments. Suitable for general-purpose HVAC applications including blower drives and compressor duty.
Specifications
- Product Type:
- General-Purpose Motor
- Subcategory:
- Single-Phase AC Motor
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Blower
- Installation Type:
- OEM Replacement
- Voltage:
- 115/230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1.5 HP
- RPM:
- 3450 RPM
- Speeds:
- 1
- Fuel Type:
- Electric
- Mounting Type:
- Round
- Frame Size:
- 56C Frame
- Motor Type:
- Capacitor Start
- Power (kW):
- 1.1 kW
- Service Factor:
- 1.0
- KVA Code:
- H
- NEMA Design:
- L
- Power Factor:
- 80%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Nema 56
- Overall Length:
- 12.49"
- Frame Length:
- 7"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 Only
- IP Rating:
- IP43
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- Country of Origin:
- USA
- UPC:
- 691720008768
- Lifecycle Status:
- Active
