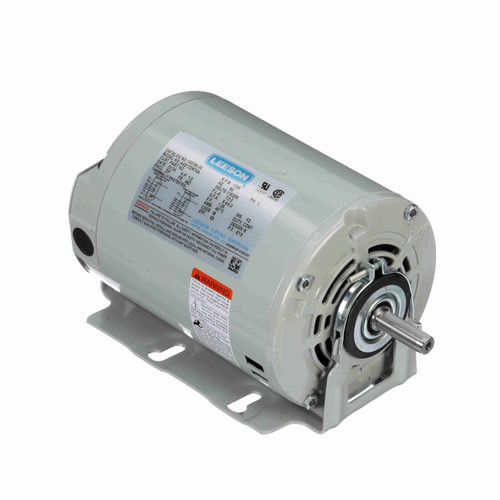

Leeson 103796.00 Refrigeration Motor

Specifications

Product Type:

Refrigeration Motor

Voltage:

115/230V

Phase:

Single Phase

Horsepower:

0.5 HP

RPM:

1725 RPM

Speeds:

1

Frame Size:

48Z Frame

Mounting Type:

Resilient Base

Motor Type:

Split Phase

Power (kW):

0.37 kW

Service Factor:

1.25

KVA Code:

M

NEMA Design:

N

Power Factor:

67.5%

Duty:

Continuous

Ambient Temperature:

40°C

Starting Method:

Across The Line

Bearings:

Ball / Ball

Bearing Sizes:

shaft end 6203, opposite end 6203

Shaft Type:

Single Special Extension

Overall Length:

10.43"

Frame Length:

6"

Mounting Orientation:

Horizontal

Assembly Position:

F1 Only

IP Rating:

IP22

Material:

Rolled Steel

Certifications:

UL Recognized, CSA

Country of Origin:

Mexico

UPC:

691720053911

Lifecycle Status:

Active
