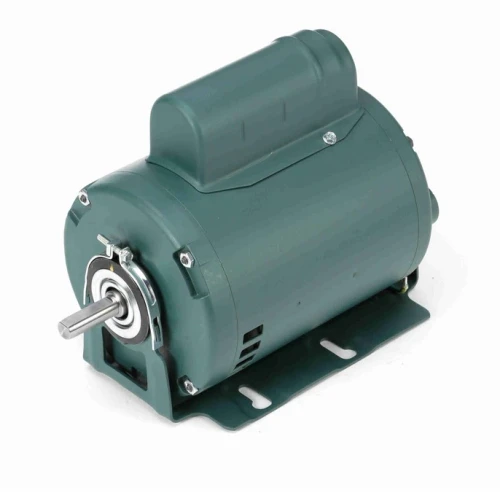

Leeson 0.33 HP single-phase fan and blower motor rated 115V, 1725 RPM, 48 frame with open drip-proof (ODP) enclosure. Features double-shielded ball bearings, automatic thermal protection, and 1.35 service factor for continuous duty operation.
Specifications
- Product Type:
- Fan and Blower Motor
- Subcategory:
- HVAC/R Blower Motor
- Application:
- Residential/Commercial
- System Type:
- HVAC, Furnace, Air Handler, Heat Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 3.2 A
- Horsepower:
- 0.33 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Frame Size:
- 48 Frame
- Mounting Type:
- Resilient Base
- Temperature Range:
- -40°C to 40°C
- Fuel Type:
- Electric
- Motor Type:
- Capacitor Start / Capacitor Run
- Power (kW):
- 0.25 kW
- Service Factor:
- 1.35
- KVA Code:
- K
- Power Factor:
- 94%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Nema 48
- Overall Length:
- 10.39"
- Frame Length:
- 6"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 Only
- IP Rating:
- IP22
- Material:
- Rolled Steel
- Country of Origin:
- Mexico
- UPC:
- 691720005507
- Lifecycle Status:
- Active
