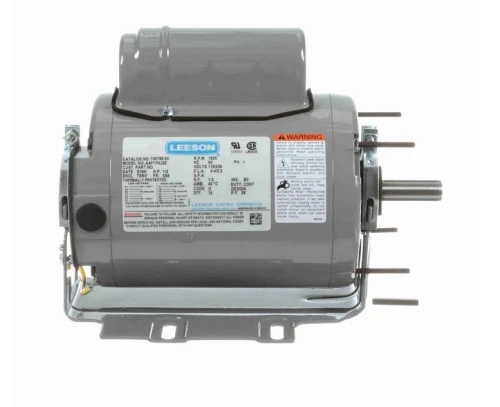

Leeson 1/2 HP single-phase PSC farm duty motor with 1625 RPM, 115/230V dual voltage, and TENV enclosure. Features NEMA 56 frame, resilient base mounting, ball bearings, and Class B insulation. Ideal for fan and blower applications in HVAC and agricultural settings.
Specifications
- Product Type:
- Single-Phase Farm Duty Motor
- Subcategory:
- Fan/Blower Motor
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 115/230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 4.4/2.2 A
- Horsepower:
- 1/2 HP
- RPM:
- 1625 RPM
- Speeds:
- 1
- Frame Size:
- 56 Frame
- Mounting Type:
- Resilient Base
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Motor Type:
- PSC
- Power (kW):
- 0.37 kW
- Service Factor:
- 1.0
- KVA Code:
- D
- Power Factor:
- 98%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Nema 56
- Overall Length:
- 10 13/16"
- Frame Length:
- 6"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 Only
- IP Rating:
- IP43
- Country of Origin:
- Mexico
- UPC:
- 691720005064
- Lifecycle Status:
- Active
