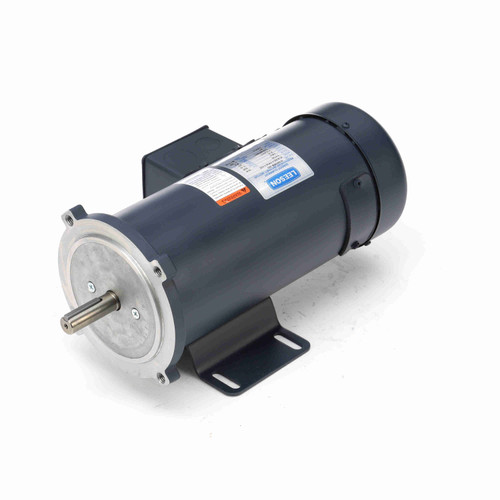

Leeson 098006.00 PMDC Motor

Leeson 098006.00 PMDC Motor

Leeson

$417.95

In Stock — 10+ available

Write a Review
SKU:
098006.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $30.55 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — call (312) 564-5212 or request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Shipping details

Specifications

Product Type:
DC Motor
Subcategory:
Permanent Magnet DC (PMDC)
Voltage:
90V
Horsepower:
0.5 HP
RPM:
2500 RPM
Frame Size:
SS56C Frame
Mounting Type:
Rigid C base
Motor Type:
PMDC
Power (kW):
0.37 kW
Service Factor:
1.0
Output Torque:
12.6 lb-in
Duty:
Continuous
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6203, opposite end 6203
Overall Length:
10 13/16"
Frame Length:
6 1/2"
Material:
Rolled Steel
Certifications:
UL Recognized, CSA
Country of Origin:
USA
Lifecycle Status:
Active
Leeson PMDC (Permanent Magnet DC) motor, model 098006.00. Permanent magnet DC motors are commonly used in HVAC applications including blower drives, damper actuators, and auxiliary equipment. Consult Leeson's technical documentation or contact the manufacturer for detailed electrical ratings, frame size, horsepower, and mounting specifications.
!
