Honeywell MS4604F1210 is a 230V AC fire and smoke damper actuator rated for UL555S smoke control systems up to 350°F. Delivers 30 lb-in (3.4 Nm) torque with spring return to 0° position on power loss. Features 2 internal SPST switches, reversible mounting for CW/CCW operation, and 95° rotation angle. Integral spring return with 15-second timing ensures reliable fail-safe operation in life-safety applications.

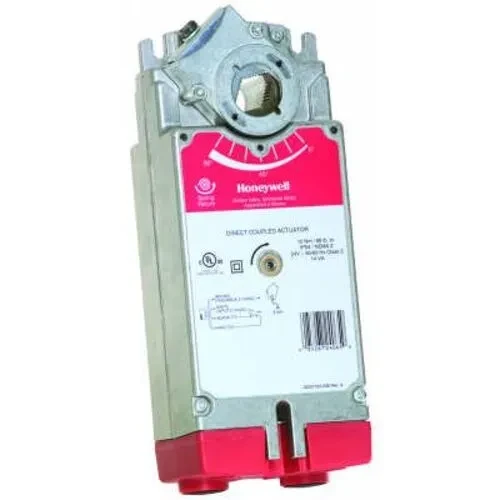

Honeywell MS4604F1210 Fire Smoke Actuator 230V 30 lb-in
Honeywell
$451.95
In Stock
Write a Review
Write a Review
Honeywell
Honeywell MS4604F1210 Fire Smoke Actuator 230V 30 lb-in
- SKU:
- MS4604F1210
Specifications
- Product Type:
- Fire Smoke Damper Actuator
- Subcategory:
- Spring Return Actuator
- Application:
- Commercial
- System Type:
- Smoke Control System, Fire Damper
- Installation Type:
- OEM Replacement
- Voltage:
- 230V AC
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Mounting Type:
- Flush Mount
- Temperature Range:
- Up to 350°F
- Material:
- Die-Cast Aluminum
- Control Type:
- Two-Position
- Switch Action:
- SPST
- Output Torque:
- 30 lb-in
