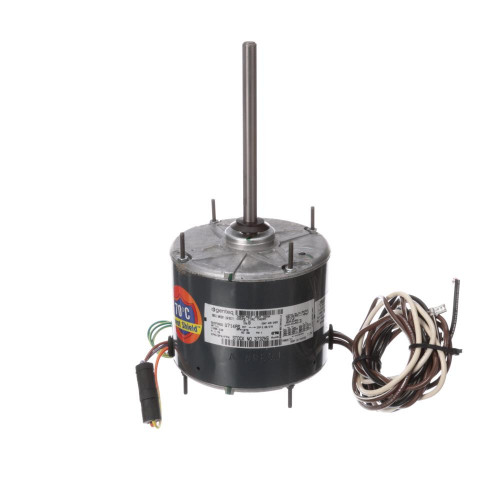

Genteq 3732HS Condenser Fan Motor 1/4 HP 208-230V

Specifications

Product Type:

Condenser Fan Motor

Subcategory:

Direct Drive

Application:

Residential/Commercial

System Type:

Split System, Package Unit, Air Conditioner

Installation Type:

OEM Replacement

Voltage:

208-230V

Voltage Class:

Line Voltage

Phase:

Single Phase

Amperage:

1.7 A

Horsepower:

1/4 HP

RPM:

1075 RPM

Speeds:

1

MFD:

5 MFD 370V

Frame Size:

48 Frame

Mounting Type:

Belly Band

Motor Type:

PSC

Service Factor:

1.0

Duty:

Continuous Air Over

Ambient Temperature:

70°C

Run Capacitor:

5 MFD 370V

Bearings:

Ball / Ball

Shaft Type:

Double Flat

Overall Length:

11.46"

Frame Length:

3.82"

Mounting Orientation:

Any

Fuel Type:

Electric

Material:

Rolled Steel

Certifications:

UL Recognized, CSA, A2L Compliant

UPC:

815585020141
