Genteq HEAT SHIELD® condenser fan motor rated 1/2–1/5 HP, 1-phase, 208–230V, 1075 RPM with 2-speed capability. 48-frame TEAO enclosure with permanent split capacitor (PSC) design. OEM replacement for residential and light commercial air conditioning systems.

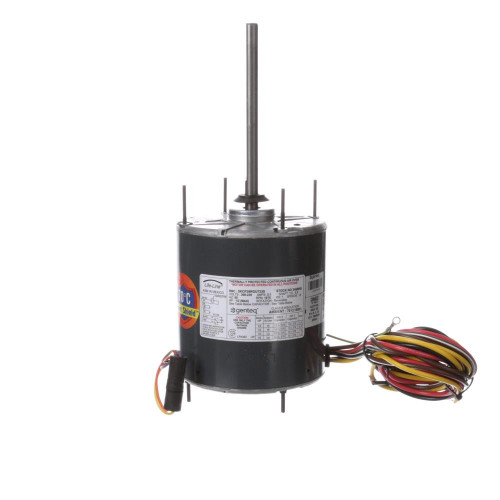

Genteq 3468HS Condenser Fan Motor 1/2-1/5 HP 208-230V 1075 RPM
Regal Rexnord - Genteq
$176.95
In Stock — 10+ available
Write a Review
Write a Review
Regal Rexnord - Genteq
Genteq 3468HS Condenser Fan Motor 1/2-1/5 HP 208-230V 1075 RPM
- SKU:
- 3468HS
Specifications
- Product Type:
- Condenser Fan Motor
- Subcategory:
- Single-Phase AC Motor
- Application:
- Residential/Commercial
- System Type:
- Split System, Package Unit, Air Conditioning
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1/2-1/5 HP
- RPM:
- 1075 RPM
- Speeds:
- 2
- MFD:
- 10 MFD
- Frame Size:
- 48 Frame
- Mounting Type:
- Round Belly Band
- Motor Type:
- PSC
- Power (kW):
- 0.37 kW
- Service Factor:
- 1.0
- Duty:
- Continuous Air Over
- Ambient Temperature:
- 70°C
- Run Capacitor:
- 10 MFD 370V
- Bearings:
- Ball / Ball
- Shaft Type:
- Double Flat
- Overall Length:
- 12.96"
- Frame Length:
- 5.32"
- Mounting Orientation:
- Vertical Shaft Down
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- Country of Origin:
- Mexico
- UPC:
- 815585020295
