Fasco UB599 is a 9-watt, 230V shaded-pole unit bearing motor rated for 1550 RPM clockwise rotation. Designed for refrigeration, HVAC, and ventilation applications including evaporator fans, condenser fans, and fan coil units. Features TEAO enclosure, automatic thermal protection, and self-lubricating unit bearing design for maintenance-free operation.

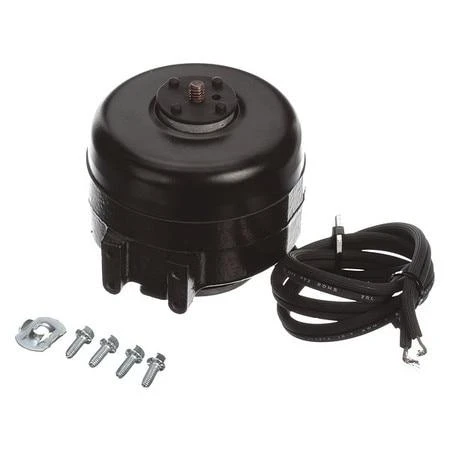

Fasco UB599 Unit Bearing Motor 9W 230V 1550 RPM
Regal Rexnord - Fasco
$61.95
In Stock — 10+ available
- SKU:
- UB599
Specifications
- Product Type:
- Unit Bearing Motor
- Subcategory:
- Shaded Pole
- Application:
- Residential/Commercial
- System Type:
- Refrigeration, HVAC, Ventilation
- Installation Type:
- OEM Replacement
- Voltage:
- 230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 0.27A
- Horsepower:
- 1/100 HP
- RPM:
- 1550 RPM
- Speeds:
- 1
- Frame Size:
- C-Frame
- Mounting Type:
- Unit Bearing
- Fuel Type:
- Electric
- Connection Type:
- 1/4 X 20 Thread
- Material:
- Cast Iron
- Motor Type:
- Shaded Pole
- Service Factor:
- 1.0
- Output Watts:
- 9 W
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Unit / Unit
- Shaft Type:
- Threaded
- Frame Length:
- 3 1/8"
- Certifications:
- UL Recognized, CSA, A2L Compliant
- Country of Origin:
- China
- UPC:
- 786674070210
- Lifecycle Status:
- Active
