Fasco D832 OEM replacement motor for HVAC systems. 0.13 HP, single-phase, 825 RPM, 208-230V operation. TEAO enclosure rated for residential and light commercial applications. Direct replacement for original equipment.

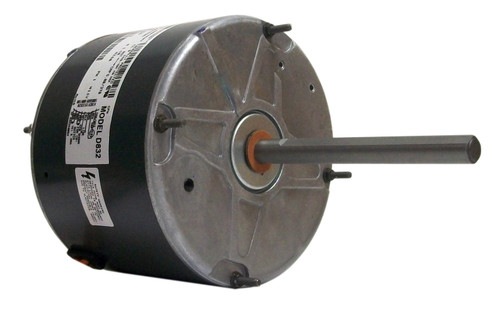

Fasco D832 OEM Replacement Motor 0.13 HP 208-230V
Regal Rexnord - Fasco
$183.95
In Stock — 10+ available
- SKU:
- D832
Specifications
- Product Type:
- OEM Replacement Motor
- Subcategory:
- Fractional Horsepower Motor
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 0.13 HP
- RPM:
- 825 RPM
- Speeds:
- 1
- Mounting Type:
- Extended Studs
- Frame Size:
- 48 Frame
- Motor Type:
- PSC
- Power (kW):
- 0.1 kW
- Service Factor:
- 1.0
- Duty:
- Continuous Air Over
- Ambient Temperature:
- 40°C
- Run Capacitor:
- 5 MFD 370V
- Bearings:
- Ball / Ball
- Shaft Type:
- Double Flat
- Overall Length:
- 9 1/16"
- Frame Length:
- 3.57"
- Mounting Orientation:
- Any
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA, A2L Compliant
- Country of Origin:
- India
- UPC:
- 818508020495
- Lifecycle Status:
- Active
