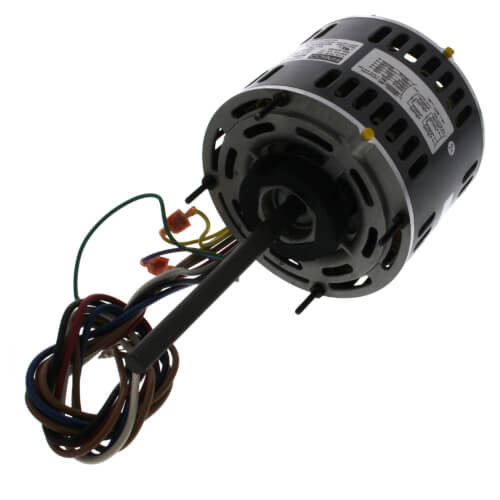

Fasco D727 Direct-Drive Fan Motor 1/3-1/5 HP 115V

Regal Rexnord - Fasco

$131.95

In Stock — 10+ available

Write a Review
SKU:
D727
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $24.83 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Fan and Blower Motor
Subcategory:
Direct Drive Blower
Application:
Residential/Commercial
System Type:
Split System, Heat Pump, Package Unit, Air Handler, Furnace
Installation Type:
OEM Replacement
Voltage:
115V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
5.9-4.6-3.8 A
Horsepower:
1/3-1/4-1/5 HP
RPM:
1075 RPM
Speeds:
3
MFD:
5 MFD 370V
Frame Size:
48 Frame
Mounting Type:
Belly Band, Resilient Ring
Fuel Type:
Electric
Material:
Rolled Steel
A2L Refrigerant:
Yes
Motor Type:
PSC
Power (kW):
0.25 kW
Service Factor:
1.0
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Run Capacitor:
5 MFD 370V
Bearings:
Sleeve / Sleeve
Shaft Type:
Double Flat
Frame Length:
4.45"
Country of Origin:
Thailand
UPC:
818508021263
Lifecycle Status:
Active
FASCO direct-drive fan and blower motor rated 1/3–1/4–1/5 HP at 115V, 60 Hz, 1075 RPM with 3-speed operation. 48-frame, 5.6" diameter unit features permanent split capacitor (PSC) design, open air-over enclosure, and thermally protected operation. Requires external 5 MFD 370V capacitor (not included). Includes 26" leads, 1/2" shaft with double flat, and resilient ring mounting with belly band option.
