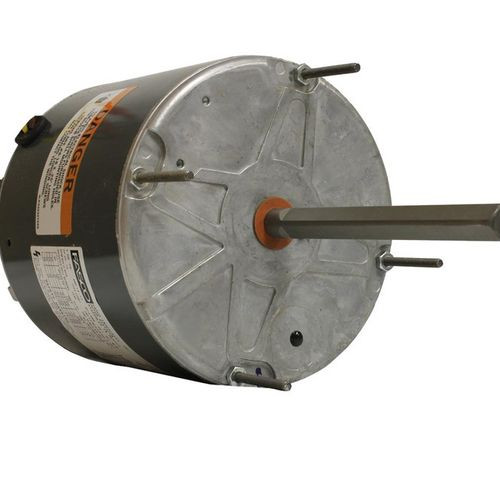

Fasco D5489 Condenser Fan Motor 1/3 HP 208-230V 825 RPM

Regal Rexnord - Fasco

$150.95
Write a Review
SKU:
D5489

Discontinued

This part is no longer made, and none of our suppliers has stock. Send us the nameplate details and we’ll look for a replacement.

Ask about a replacement

We reply within one business day — quotes@globalpartsupply.com

Specifications

Product Type:
Condenser Fan Motor
Subcategory:
Single-Phase AC Motor
Application:
Residential/Commercial
System Type:
Split System, Package Unit
Installation Type:
OEM Replacement
Voltage:
208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Horsepower:
1/3-1/4 HP
RPM:
825 RPM
Speeds:
1
Mounting Type:
Direct Drive
Fuel Type:
Electric
Frame Size:
48 Frame
Motor Type:
PSC
Power (kW):
0.25 kW
Service Factor:
1.0
Duty:
Continuous Air Over
Ambient Temperature:
40°C
Run Capacitor:
7.5 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Double Flat
Overall Length:
11 9/16"
Frame Length:
4.32"
Mounting Orientation:
Any
Material:
Rolled Steel
Certifications:
UL Recognized, CSA, A2L Compliant
Country of Origin:
Mexico
UPC:
818508020990
Lifecycle Status:
Discontinued by manufacturer
Fasco 1/3 HP single-phase condenser fan motor rated 208-230V, 825 RPM. TEAO enclosure with 1/2" shaft. Direct-drive replacement for residential and light commercial air conditioning systems.
