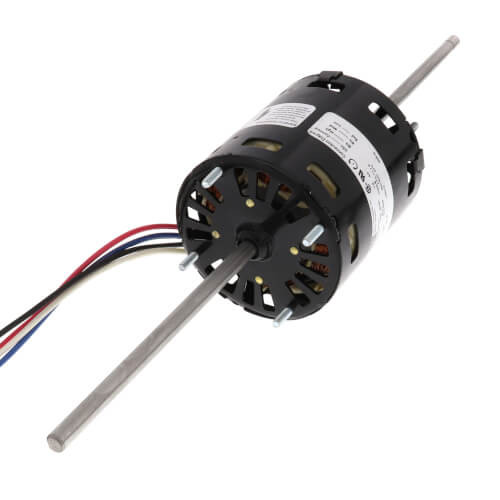

Fasco D367 3-Speed Fan Motor 115V 1550 RPM 1/10 HP

Regal Rexnord - Fasco

$108.95

In Stock — 10+ available

Write a Review
SKU:
D367
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $23.95 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Fan Coil Motor
Subcategory:
Window Air Conditioner / Fan Coil
Application:
Residential
System Type:
Window Air Conditioner, Fan Coil Unit
Installation Type:
OEM Replacement
Voltage:
115V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
2.7-2.1-1.7 A
Horsepower:
1/10-1/15-1/30 HP
RPM:
1550 RPM
Speeds:
3
Frame Size:
3.3 Frame
Mounting Type:
Extended Studs
Temperature Range:
40°C Ambient
Fuel Type:
Electric
Connection Type:
Flag Terminal
Material:
Rolled Steel
Motor Type:
Shaded Pole
Power (kW):
0.07 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Sleeve / Sleeve
Shaft Type:
Flat
Overall Length:
15 3/16"
Frame Length:
3.4"
Country of Origin:
Mexico
UPC:
815585029762
Lifecycle Status:
Active
FASCO 3-speed shaded pole motor for window air-conditioning and fan coil applications. 115V, 1550 RPM, 1/10–1/15–1/30 HP selectable output with thermally protected open air-over enclosure. 5/16" double shaft with flag terminals; 17" leads. Class B insulation rated for 40°C ambient.
