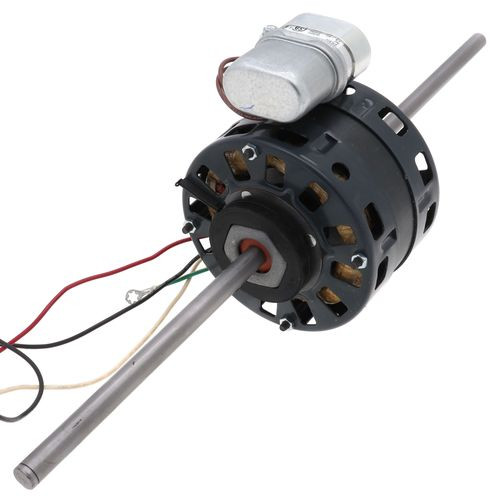

Fasco D258A Fan Motor 1/5 HP 208-230V 1550 RPM 2-Speed

Regal Rexnord - Fasco

$127.95

In Stock — 10+ available

Write a Review
SKU:
D258A
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $23.95 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Fan Coil Motor
Subcategory:
AC Motor - PSC
Application:
Residential/Commercial
System Type:
Fan Coil, Air Handler, Heat Pump, Split System
Installation Type:
OEM Replacement
Voltage:
208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
2.8 A, 1.3 A
Horsepower:
1/5 HP, 1/10 HP
RPM:
1550 RPM
Speeds:
2
MFD:
5 MFD 370V
Frame Size:
42 Frame
Mounting Type:
Resilient Rings
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
PSC
Power (kW):
0.15 kW
Service Factor:
1.0
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Run Capacitor:
5 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Flat
Frame Length:
3.83"
Country of Origin:
Mexico
UPC:
818508029122
Lifecycle Status:
Active
Permanent Split Capacitor (PSC) fan coil and air conditioner motor rated 1/5 HP at 208-230V, 1550 RPM, 2-speed operation. 42 Frame, Open Air Over enclosure with thermally protected Class B insulation. Includes 5 MFD 370V capacitor.
