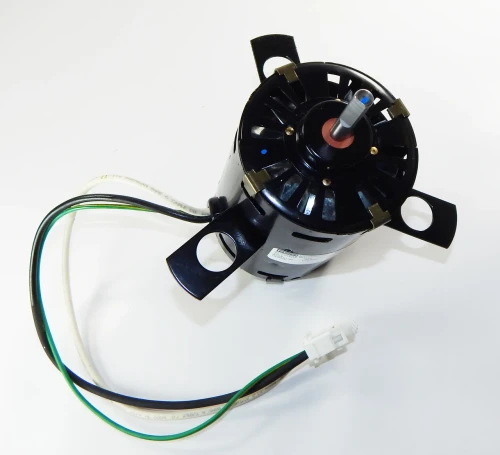

Fasco D1190 Draft Booster Motor 1/30 HP 115V 3300 RPM

Regal Rexnord - Fasco

$187.95

In Stock — 10+ available

Write a Review
SKU:
D1190
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $23.95 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Fractional Horsepower Motor
Subcategory:
Blower/Draft Inducer Motor
Application:
Residential/Commercial
System Type:
Furnace, Boiler, Draft Inducer
Installation Type:
OEM Replacement
Voltage:
115V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
1.6A
Horsepower:
1/30 HP
RPM:
3300 RPM
Speeds:
1
Mounting Type:
Lug Mount
Material:
Rolled Steel
Frame Size:
3.3 Frame
Motor Type:
Shaded Pole
Power (kW):
0.02 kW
Duty:
Air Over
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Sleeve / Sleeve
Shaft Type:
Flat
Overall Length:
7.08"
Frame Length:
4 5/8"
Certifications:
UL Recognized, CSA
UPC:
815585028130
Lifecycle Status:
Active
1/30 HP fractional horsepower motor rated 115V, 60 Hz, 3300 RPM clockwise rotation. Designed for air-moving applications including draft boosters, flue exhaust, and HVAC blower service. Features 5/16" shaft, sleeve bearings, and lug mount.
