FASCO D114 is a 1/12 HP single-phase motor designed for fan coil and air conditioning applications. Operates at 1550 RPM with dual voltage (115/230V) capability, making it suitable for residential and light commercial HVAC systems. Features TEAO enclosure, thermally protected, Class A insulation, and shaded pole design for reliable, quiet operation.

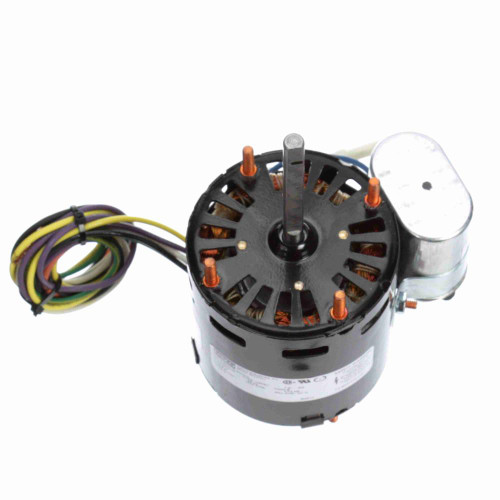

Fasco D114 Fan Motor 1/12 HP 115/230V 1550RPM
Regal Rexnord - Fasco
$384.95
In Stock — 10+ available
- SKU:
- D114
Specifications
- Product Type:
- Fan Coil Motor
- Subcategory:
- AC Motor - HVAC/R
- Application:
- Residential/Commercial
- System Type:
- Fan Coil, Air Conditioner, Heat Pump, Air Handler
- Installation Type:
- OEM Replacement
- Voltage:
- 115/230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 2.5/1.3 A
- Horsepower:
- 1/12 HP
- RPM:
- 1550 RPM
- Speeds:
- 1
- Frame Size:
- 4.4 Frame
- Mounting Type:
- Extended Studs
- Fuel Type:
- Electric
- Connection Type:
- Conduit Box
- Material:
- Rolled Steel
- Motor Type:
- Shaded Pole
- Power (kW):
- 0.06 kW
- Duty:
- Air Over
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Sleeve / Sleeve
- Shaft Type:
- Flat
- Overall Length:
- 7 5/8"
- Country of Origin:
- Mexico
- UPC:
- 818508022055
- Lifecycle Status:
- Active
