Fasco OEM replacement HVAC motor, 1/12 HP, single-phase, 115–127V, 3-speed with 1375 RPM base speed. Features 42 frame, open air-over enclosure, permanent split capacitor (PSC) design with included 6 MFD 370V capacitor, and thermally protected operation. Ideal for fan coils, air handlers, and ventilation systems requiring low-power, variable-speed airflow control.

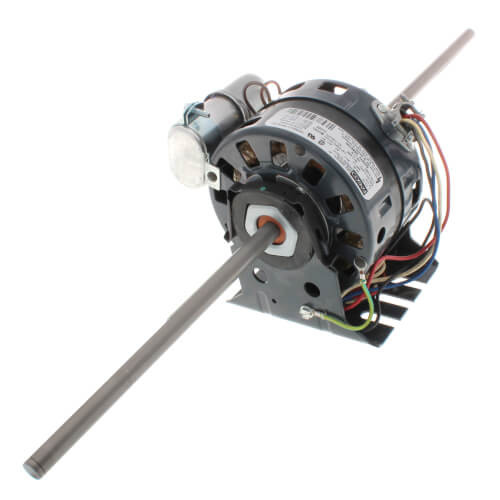

Fasco D1055A Motor 1/12 HP 115-127V 3-Speed 42 Frame
Regal Rexnord - Fasco
$218.95
In Stock — 10+ available
- SKU:
- D1055A
Specifications
- Product Type:
- Blower Motor
- Subcategory:
- HVAC Fan Motor
- Application:
- Residential/Commercial
- System Type:
- Fan Coil, Air Handler, Ventilation System
- Installation Type:
- OEM Replacement
- Voltage:
- 115-127V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 1.9 A
- Horsepower:
- 1/12 HP
- RPM:
- 1375 RPM
- Speeds:
- 3
- MFD:
- 6 MFD 370V
- Frame Size:
- 42 Frame
- Mounting Type:
- Resilient Base
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Motor Type:
- PSC
- Power (kW):
- 0.06 kW
- Service Factor:
- 1.0
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 6 MFD 370V
- Bearings:
- Ball / Ball
- Shaft Type:
- Flat
- Frame Length:
- 3.58"
- Country of Origin:
- Mexico
- UPC:
- 818508029047
- Lifecycle Status:
- Active
