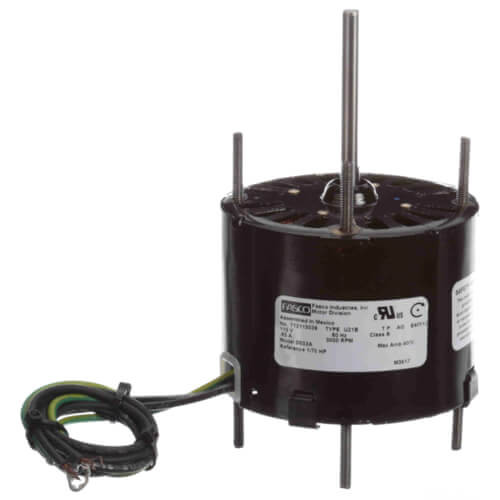

Fasco D032A Ventilation Motor 1/70 HP 115V 3000 RPM

Regal Rexnord - Fasco

$88.95

In Stock — 10+ available

Write a Review
SKU:
D032A
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $17.95 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Ventilation Motor
Subcategory:
Shaded Pole Motor
Application:
Residential/Commercial
System Type:
Furnace, Air Handler, Ventilation
Installation Type:
OEM Replacement
Voltage:
115V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
0.65A
Horsepower:
1/70 HP
RPM:
3000 RPM
Speeds:
1
Frame Size:
3.3 Frame
Mounting Type:
Belly Band
Fuel Type:
Electric
Material:
Steel
Motor Type:
Shaded Pole
Power (kW):
0.01 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Sleeve / Sleeve
Shaft Type:
Flat
Overall Length:
5.33"
Frame Length:
2.55"
Country of Origin:
Mexico
UPC:
815585027263
Lifecycle Status:
Active
Fasco 1/70 HP shaded pole ventilation motor rated for 115V, 60 Hz, single-phase operation at 3000 RPM. Features 3.3" diameter open air-over enclosure with thermally protected Class B insulation, sleeve bearing, and 5/16" double shaft with flat. Includes 12" leads and belly band mounting studs; ideal for fan and blower duty applications.
