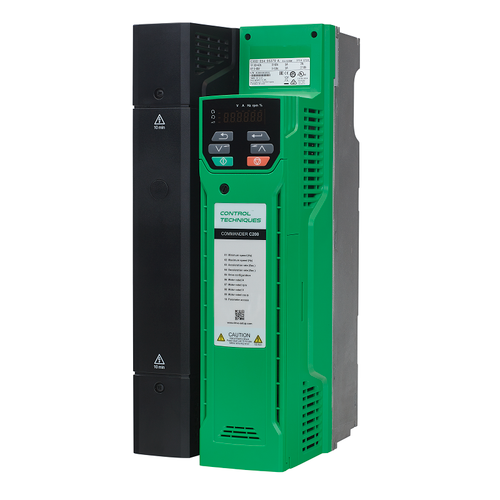

Control Techniques C200-05400300 VFD 15kW 3-Phase 480V

Control Techniques C200-05400300 VFD 15kW 3-Phase 480V

NIDEC - Control Techniques

$1,442.95
Write a Review
SKU:
C200-05400300

Freight quoted separately

Tell us where it’s going and we’ll come back with a price and freight cost.

Request price & availability

We reply within one business day — quotes@globalpartsupply.com

Specifications

Product Type:
Variable Frequency Drive (VFD)
Subcategory:
AC Motor Speed Controller
Application:
Commercial/Industrial
System Type:
AC Motor Drive System
Installation Type:
OEM Replacement
Voltage:
380-480V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
30A
Mounting Type:
Panel Mount
Input Voltage:
400/460V
Input Phase:
Three Phase
Input Amps:
30A
Output Voltage:
460V
Output Phase:
Three Phase
Output Amps:
30A
HP (Constant Torque):
20 HP
HP (Variable Torque):
20 HP
Temperature Range:
-20°C to 40°C
Commander C200 variable frequency drive for AC motor speed control. 15kW rated power, 3-phase input, 480V maximum supply, 30A output current. Features onboard PLC, Dual Safe Torque Off (STO) to SIL 3/PLe, up to 180% overload capability, and energy-saving technology. Panel-mount, IP20 rated, operating range -20°C to 40°C. UL, CE, cUL certified.
!
