Century T1102 is a 1 HP, single-phase jet pump motor rated 115/230V, 60 Hz, 3600 RPM with NEMA 56J frame and open drip-proof enclosure. Features capacitor-start design, automatic thermal protection, and threaded shaft for direct pump coupling. Service factor 1.4; CSA certified.

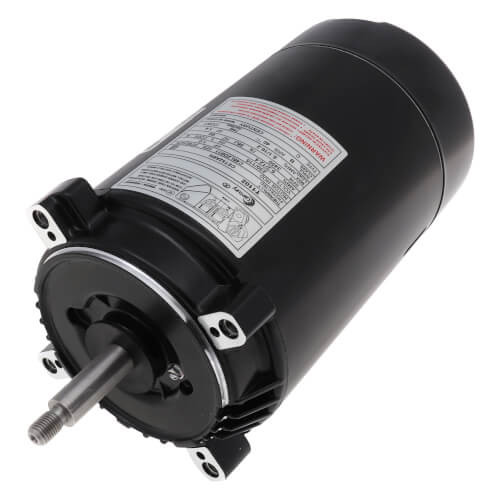

Century T1102 Jet Pump Motor 1 HP 115/230V 3600 RPM
Regal Rexnord - Century Motors
$314.95
In Stock — 10+ available
- SKU:
- T1102
Specifications
- Product Type:
- Jet Pump Motor
- Subcategory:
- Single-Phase AC Motor
- Application:
- Residential/Commercial
- System Type:
- Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 115/230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 12.4/6.2 A
- Horsepower:
- 1 HP
- RPM:
- 3450 RPM
- Speeds:
- 1
- Frame Size:
- 56J Frame
- Mounting Type:
- C-Face Flange
- Fuel Type:
- Electric
- Motor Type:
- Capacitor Start
- Power (kW):
- 0.75 kW
- Service Factor:
- 1.4
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Shaft Type:
- Threaded
- Overall Length:
- 12 9/16"
- Frame Length:
- 6 3/4"
- Material:
- Rolled Steel
- Certifications:
- CSA
- Country of Origin:
- China
- UPC:
- 786674032065
- Lifecycle Status:
- Active
